Assembled Bee Frames with Threaded Wire

,

Assembled Bee Frames with Threaded Wire

Brand Name:BeeBrill
Model Number:BB-F03
Material:Pine Wood
Frame type
Deep frame: 48.3*44.8*23.2cm Medium frame: 48.3*44.8*15.9cm or customized







The wooded bee frames . Three types of beehives can be provided:

* Standard: Assembled wired frames made of European pine without knots ,
* Upper bar length 483mm,Bottom bar length 448mm, , Side bar length 232mm,159mm,136mm,

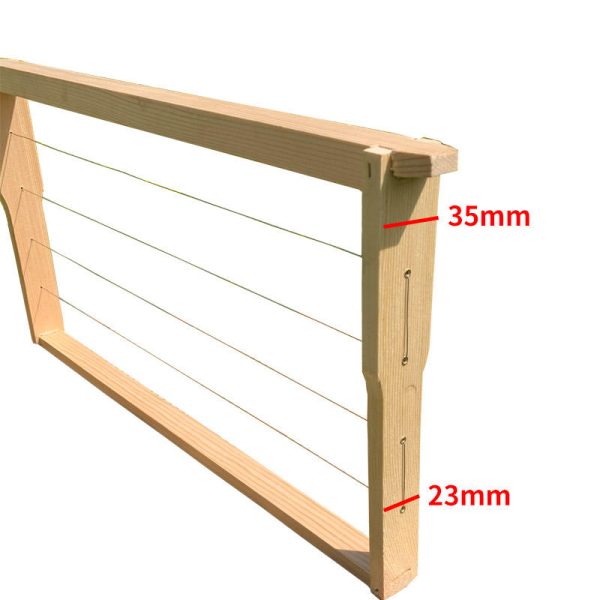

* Groove depth of upper and bottom bars4*5mm,upper bar thickness 16mm,bottom bar thickness 13mm, Side bar width 36mm/35mm/33mm,
* Side bar with eyelets installed, Upper bar and bottom bars nailed ,
* Side bar nails fixed Upper bar nail size: 33*10mm, Bottom bar nail size: 37*5.7mm,
* Side bar nail size: 18*5mm,201 stainless steel wire,Side bar wire fixed by nails,,
* If other specifications are needed, pls provide detailed diagram.

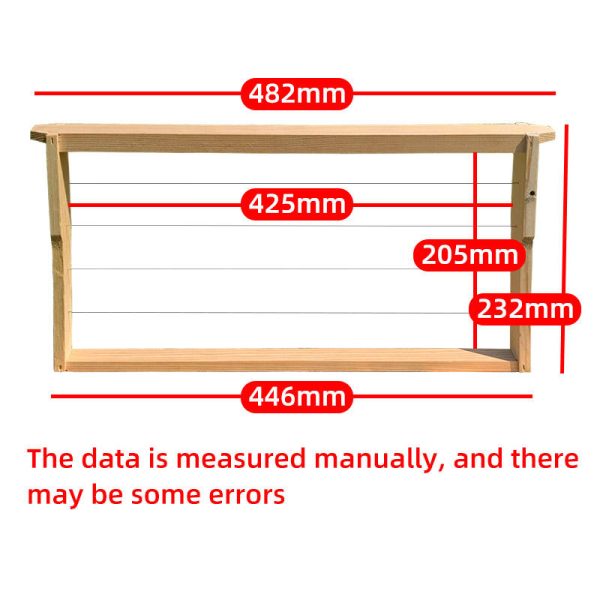

Beehive frame
Deep frame
 483*448*232 mm=9 1/8”
Medium frame
483*448*158mm= 6 1/4”
Shallow frame
483*448*143 mm= 5 3/8”
top bar
26mm(W)X 16mm(thickless)

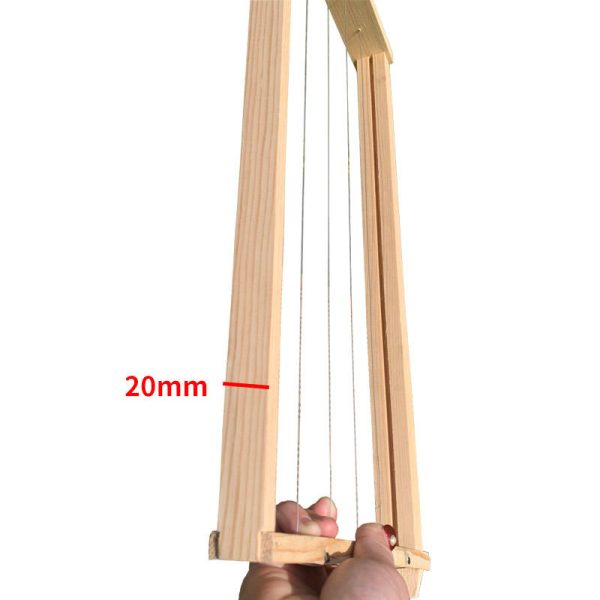

bottom bar
20mm(W)X 13mm(thickless)
 side bar=end bar
36mm(W)X 10mm(thickless)

beehive framesbeehive framesbeehive frames



bee frames





beeframes

beeframesbeeframes

beeframes

Bee Hive Framesbeekeeping factory

FAQ:


Q: Are you factory?
A: Yes, our factory is in China biggest beekeeping supply area.
Q: Does your beekeeping equipment in good quality?
A: Yes, our product is very popular is Europe, Africa, Asia and so on.
Q: What’s your shipping way?
A: By sea, by air, or via DHL, UPS, TNT, FedEx, EMS etc. (We’ll choose the most suitable way and lowest delivery cost for you.)
Q: What else products you supplying?
A: Bee products, such as Beeswax, beeswax foundation sheet, bee pollen propolis and so on; beekeeping machines, such as honey machines, honey extraction, beehive frame grip, beeswax machines and so on; Beekeeping equipment and tools with kinds of tools.
Q:What is your MOQ? Can we get a small order for the first time?
A:Our MOQ is based on the price,The lower quantity the higher price,We can accept mix the order and trial order, please confirm details with us.
Q:Can The Price Be Cheaper?
A:If you choose the Trade Assurence order, we can give you some discount according to your demand quantity.
